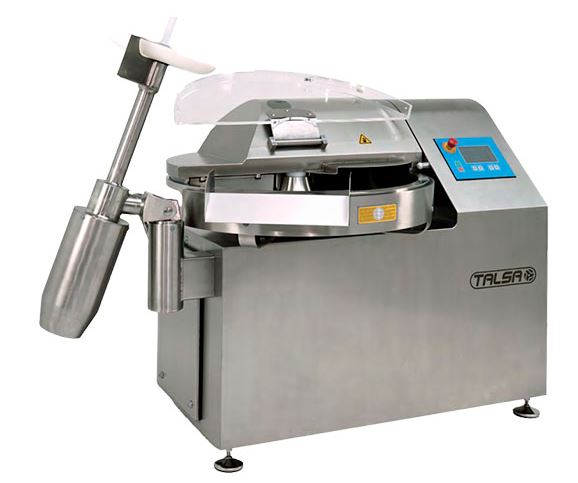

Talsa Model K80neo Electronic Industrial Bowl Cutter

Talsa Model K80neo Electronic Industrial Bowl Cutter

This item has been discontinued.  The new bowl chopper is the K55 or the K95.  Here are their direct links:

TBD

The Talsa Model K80neo Electronic Industrial Bowl Cutter is designed for the production of sausage hash of all kinds, for large slaughterhouses and industrial meat processors. The Talsa Model K80neo Electronic Industrial Bowl Cutter or bowl chopper is also suitable for a wide range of poultry, fish, pastry or vegetarian products, processed cheese and many commodities in the food processing industry.
The Talsa Model K80neo Electronic Industrial Bowl Cutter cuts, mixes and emulsifies all types of food products, from thick or very fine textures. It is simple to use, has an automated control system and is cleaned/maintained with ease.

RAM Manufacturing Equipment is located in Corona, California. We offer training, installation, service and parts for all the machines we sell. Including the Talsa Model K80neo Electronic Industrial Bowl Cutter and many others.
Call, E-mail or visit us today for more information!

235 Benjamin Dr. Suite 102
Corona, CA 92879

951-734-8152
info@ramaxwell.com

Find this machine and many others at our website link below:
https://ramaxwell.com/products/talsa-model-k80neo-electronic-industrial-bowl-cutter

Features

  • Made of AISI304 stainless steel
  • Thick cast stainless steel bowl
  • Electronically variable, high knife speeds; 1000-4000 rpm
  • 2-3 independent motors
  • Standard forward and reverse, slow knife mixing speed
  • 24 V, water resistant electrical unit
  • Automatic knife brake
  • Thermally protected, electric knife motor

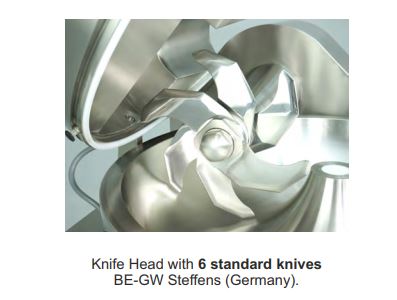

  • Interchangeable 6 and 3 knife head with compensation rings
  • Digital dough thermometer

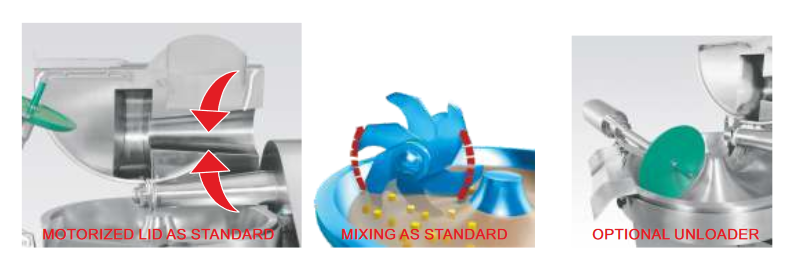

  • Motorized, opening and closing knife cover
  • Folding plastic anti-noise cover with CE automatic speed reduction when opened
  • Closed base
  • Easy cleaning
  • Detachable 6-knife head and compensation rings for use with 3 knives
  • Knife shaft designed with dynamic 3D modelling to achieve further reduction of vibrations.
  • Motorized stainless steel knife lid for effortless lifting and lowering.
  • Machine frame, bowl and all bolts & screws 100% stainless steel AISI304.
  • Solid bowl made of robust stainless steel cast, with liquid drain plug.

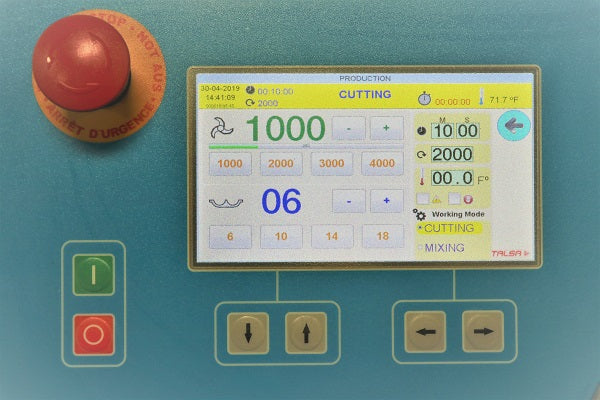

  • Control panel with large 7" digital touch screen and 6 membrane pushbuttons.
  • Variable high cutting speed from 1.000 to 4.000 rpm.
  • 4 pre-selectable knife speeds: 1.000, 2.000, 3.000 and 4.000 rpm.
  • Variable bowl speed from 6 to 18 rpm, 4 pre-selectable speeds
  • Slow mixing speed variable from 50 to 200 rpm, forward & reverse.
  • 4 pre-selectable speeds: 50, 100, 150 and 200 rpm.
  • Variable mixing bowl speed from 6 to 10 rpm.

Optional Features

  • Motorized unloader
  • Unloader extracting arm with motorized disc

Specifications

Model k50neo K80neo K120neo K200neo
Bowl Capacity 100 lbs 160 lbs 120 litres 205 litres
Approx. Batch Size Soft Meat 82 lbs / Dogged Meat 55 lbs Soft Meat 132 Lbs dogged meat 88 Lbs. soft meat 200lbs dogged meat 132 lbs Soft Meat 350 lbs. Dogged Meat 220lbs.
Machine Power with Standard Motor 23.0 HP 32.0HP 48 HP 82HP
Machine Power with Power Plus Motor 32.0 HP 42.0 HP 82 HP 109 HP
Knife Motor Power Standard 21.0 HP 30.0HP 41 HP 75HP
Knife Motor Power Power Plus 30.0 HP 40.0 HP 75 HP 102 HP
Bowl Motor Power 2.0 HP 2.0 HP 4 HP 4 HP
Hydraulic unloading Disc Motor Power N/A 0,4 kW 0,5 HP 0,5 HP
Max. Consumption, Standard Motor 380/400 V- 220/230 V 31,8 AMP- 52,6 AMP 380/400V 41,3 AMP 220/230 V 72,9AMP 380/400 V 60 A - 460/480 V 52 A - 220/230 V 107 A 380/400 V -104 A 460/480 V - 85 A 220/230 V - N/A
Max. Consumption, Power Plus Motor 380/400 V- 220/230 V 41,3 AMP -72,9AMP 380/400 V 60,0 AMP 220/230 V 107AMP 380/400 V 104 A - 460/480 V 85 A 380/400 V -136 A 460/480 V -110 A
Knife Speed Cutting variable 1.000 to 4.000 rpm preselectable 1.000/2.000/3.000/4.000 rpm variable 1.000 to 4.000 rpm preselectable 1.000/2.000/3.000/4.000 rpm variable 1.000-4.000 rpm preselectable 1.000/2.000/3.000/4.000 rpm variable 1.000-4.000 rpm preselectable 1.000/2.000/3.000/4.000 rpm Linear
Linear Knife Speed at 4.000 rpm up to 75 m/s at 4.000 rpm up to 87 m/s at 4.000 rpm up to 100 m/s up to 117 m/s
Bowl Speed Cutting 6/10/14/18 rpm 6/10 rpm 6/10/14/18 rpm 6/10/14/18 rpm
Knife Speed Mixing variable 50 to 200 rpm preselectable 50/100/150/200/ rpm variable 50 to 200 rpm preselectable 50/100/150/200/rpm variable 50-200 rpm preselectable 50/100/150/200 rpm variable 50-200 rpm preselectable 50/100/150/200 rpm
Bowl Speed Mixing 6/10/14/18 rpm 6/10 rpm 6/10 rpm 6/10 rpm
Speed of unloader Disc. 130 rpm @50 Hz (156 rpm@60 Hz 130 rpm @50 Hz (156rpm @60 Hz) 130 rpm@50 Hz (156 rpm@60 Hz) 130 rpm@50 Hz (156 rpm@60 Hz)
Net Weight Approx. 1320 lbs 2425lbs 3300 lbs 6,600lbs
Sound Pressure Level at 1m +74 dB (A) 75dB(A) ± 75 dB(A) ± 79 dB(A)
Operating Temperature +5 degree +40 degree C (40 to 105 degree F) +5 degree +40 degree C (40 to 105 degree F) +5º to +40º C (40º to 105º F) +5º to +40º C (40º to 105º F)
Recommended Relative Humidity Level 20 to 90 % 20 to 90 % 20 to 90 % 20 to 90 %
